HD ADJUSTABLE BRACKETS

The HD Adjustable Brackets (models 8304, 8305, 8306, 8307) are part of the  RacksBrax HD range, offering a universal solution for height adjustment in roof rack and accessory mounting systems. These brackets are fully compatible across the entire RacksBrax HD Hitch range, making them a versatile option for a variety of setups.

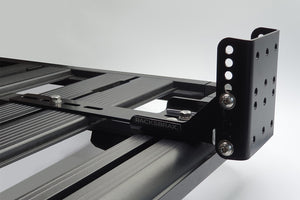

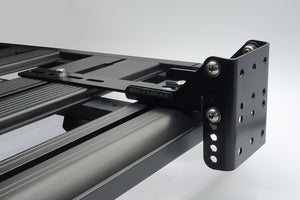

The RacksBrax HD Adjustable Brackets (HD AB 0-15) are designed specifically for the RacksBrax HD Hitch and provide universal height adjustability. These brackets can be set to a vertical position (ideal for mounting awnings) or adjusted to 15° off vertical (perfect for mounting recovery boards). For users with the RacksBrax XD Hitch, XD versions of these brackets are also available.

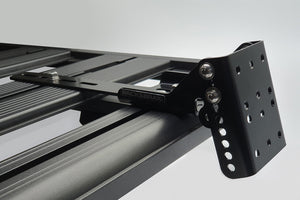

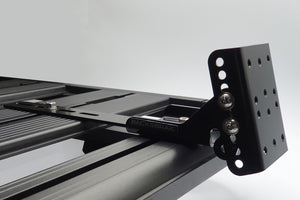

With a universal height adjustment feature, these brackets offer a range of 50mm (in 12.5mm increments) in both the vertical and 15° off vertical planes. This allows you to set the top of the bracket (and attached accessory) as low as possible, minimizing headroom without interfering with door openings. This makes the brackets highly functional and universal in their ability to maximize available space while optimizing load positioning.

Adjustable Brackets adjust the height of the bracket (and accessory) to allow the top of the bracket (and accessory) to be set as low as possible without the accessory interfering with door openings (thus reducing headroom to the minimum possible).

The RacksBrax HD Adjustable Brackets are specifically designed to fit the upright portion of the RacksBrax HD Hitch, but they can also be used universally with accessories that have mounting points at 50mm centres, even without an HD Hitch.

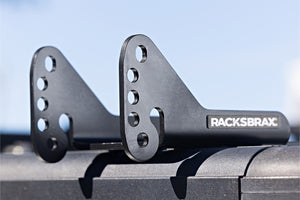

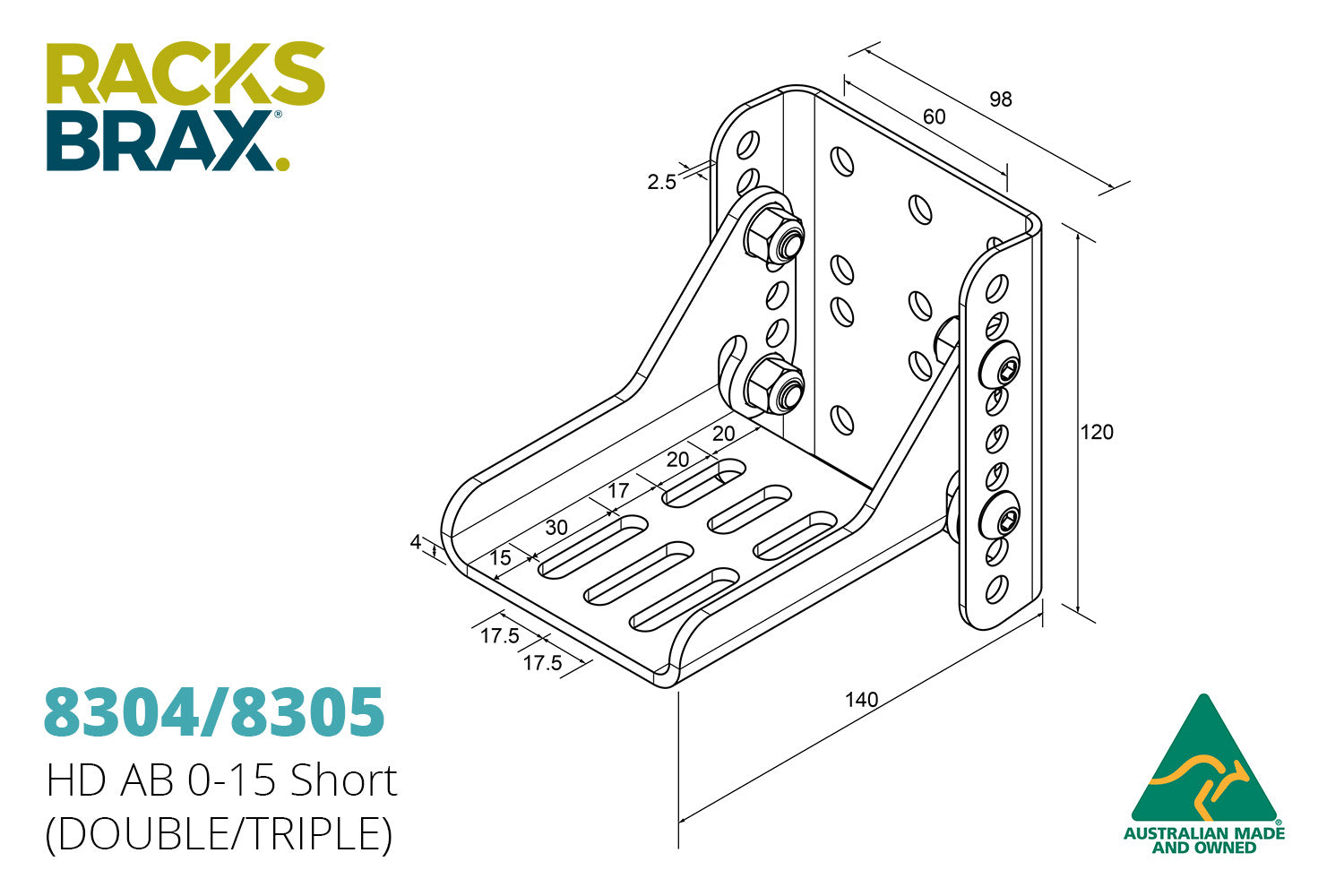

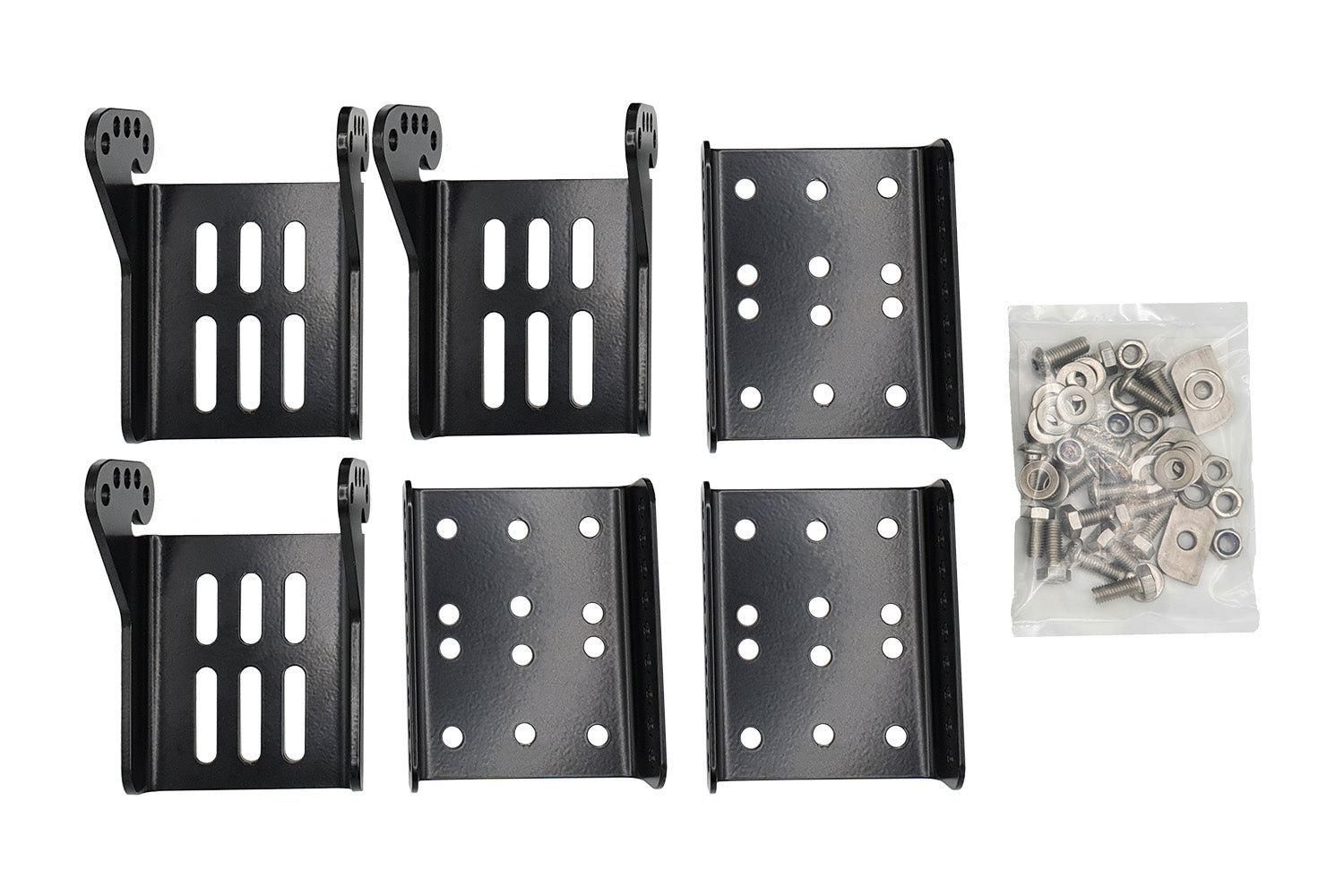

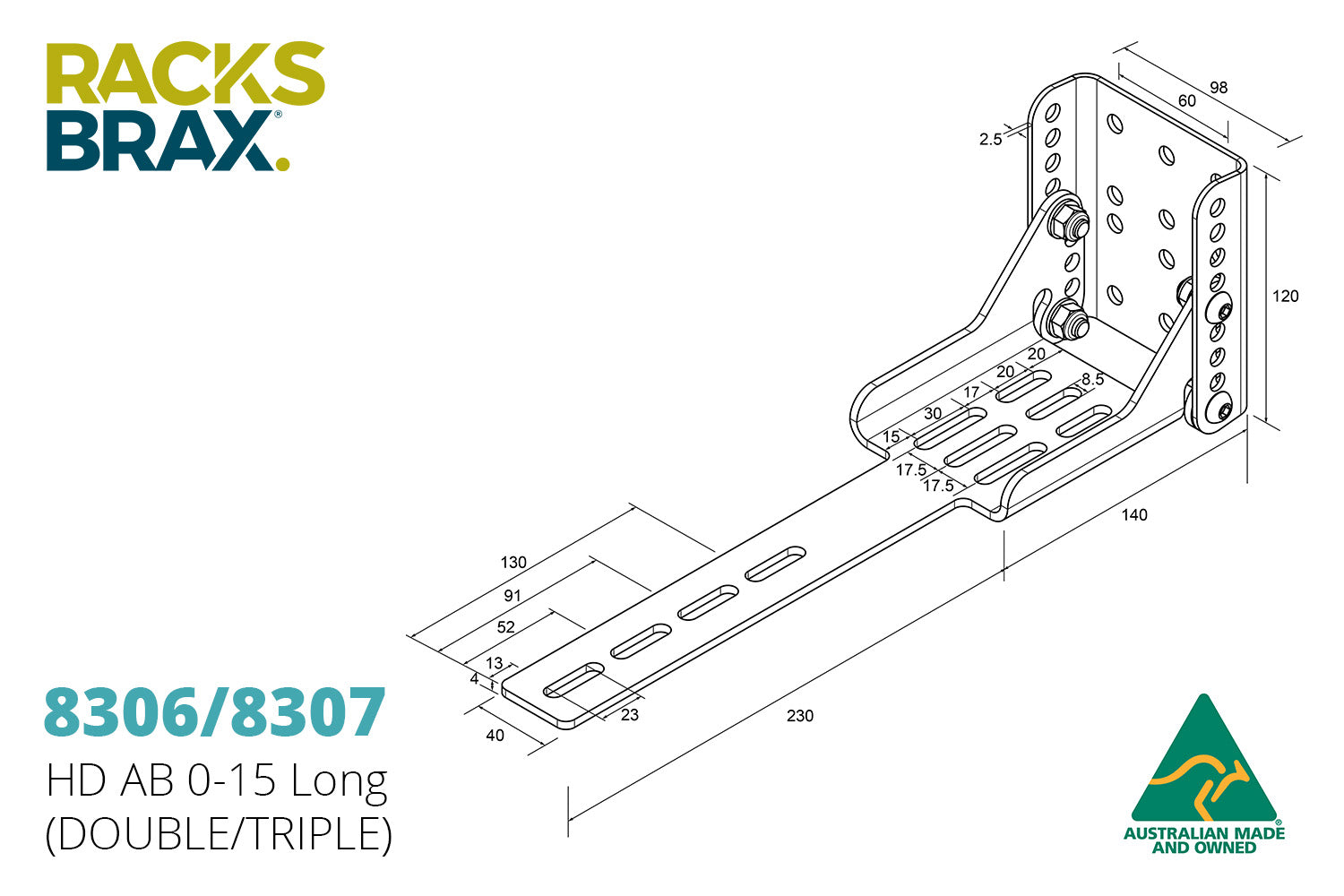

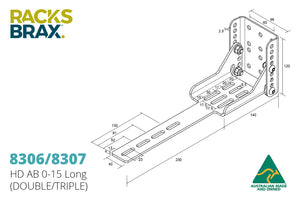

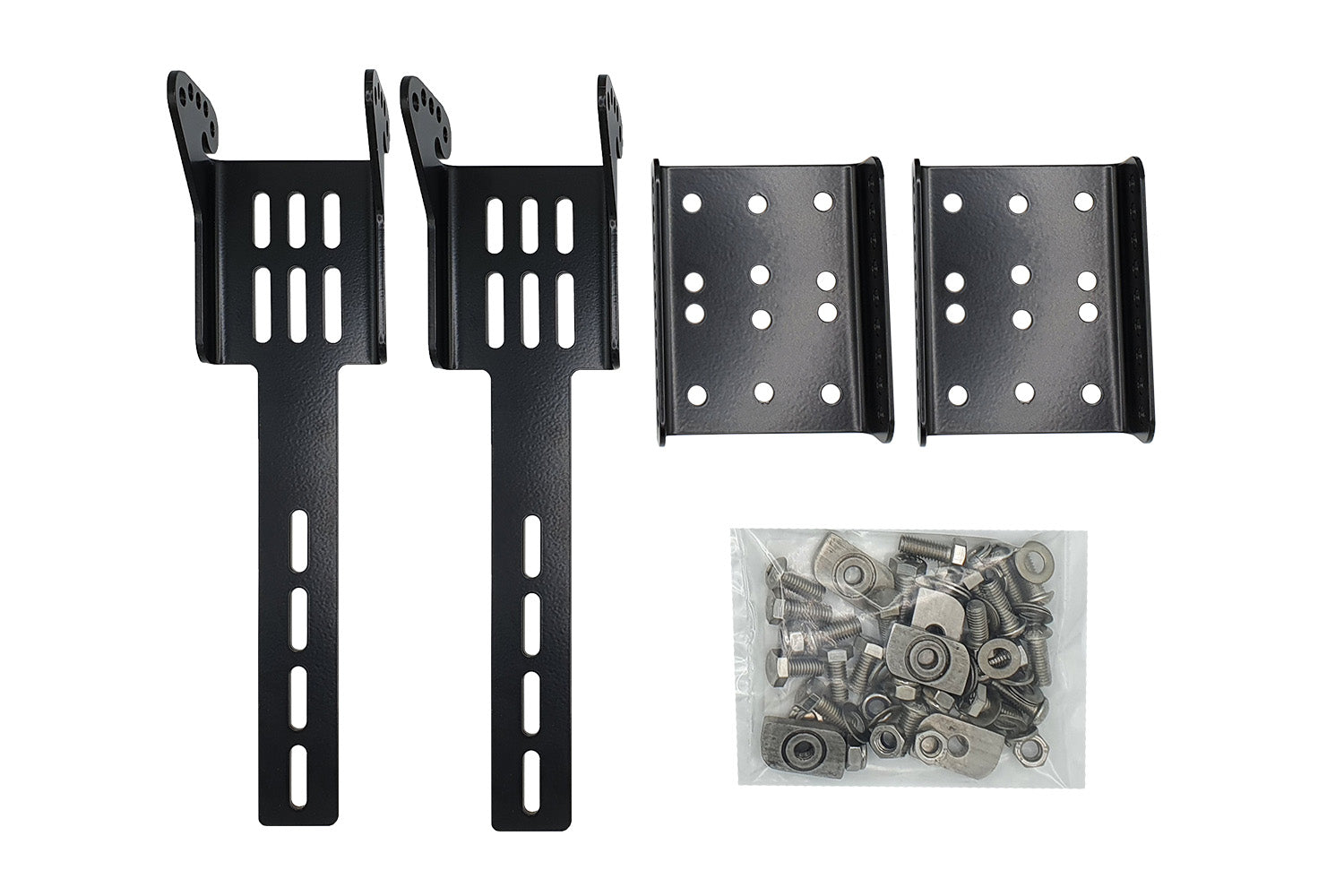

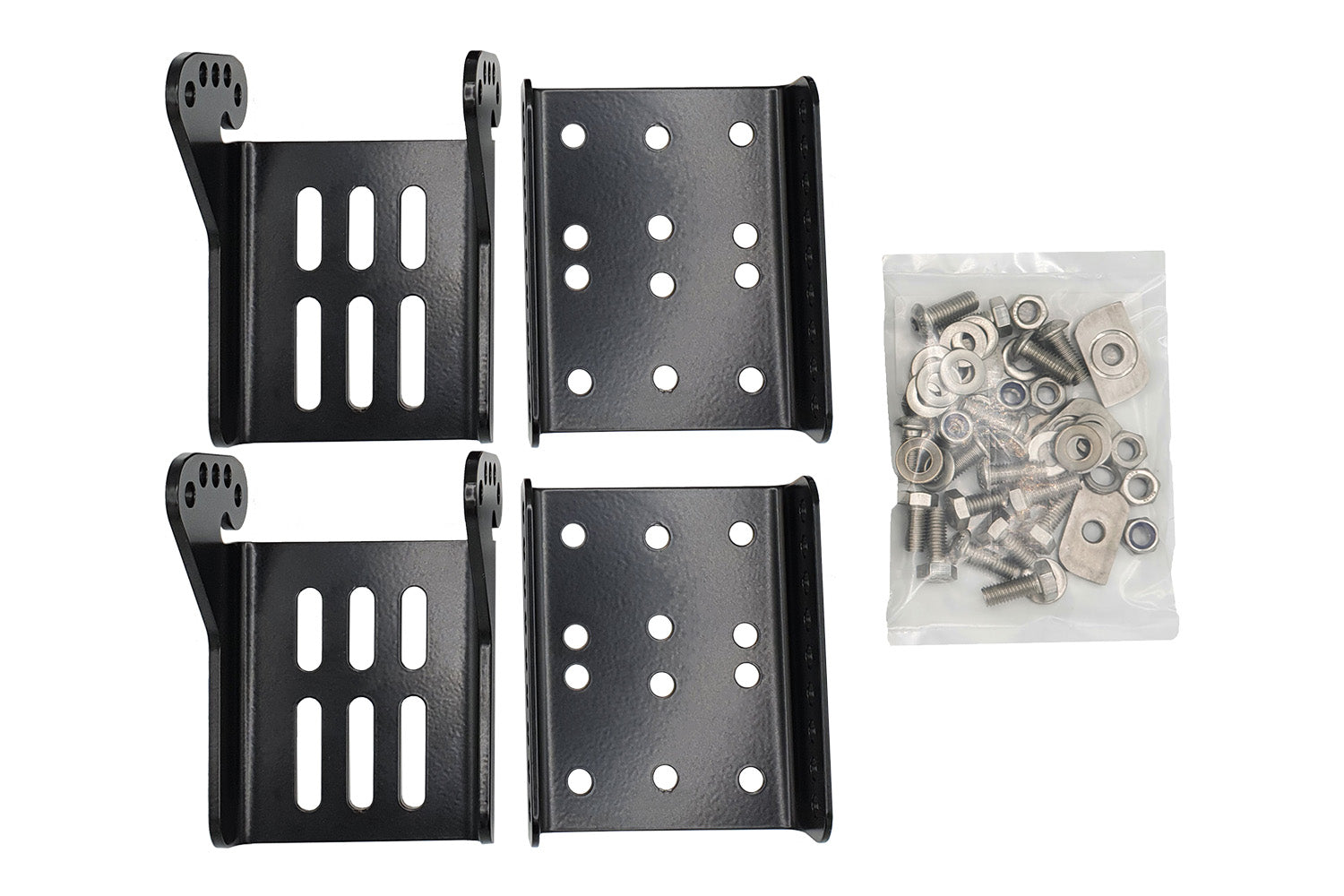

These brackets are available in LONG or SHORT foot versions, with both double and triple sets offered. Each bracket is rated for a 20kg (44lbs) load, subject to roof rack load limits.

Key Features:

• Universal height adjustment with 50mm range in 12.5mm increments in both vertical and 15° off vertical planes

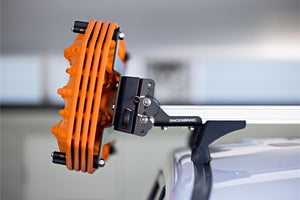

• Vertical setting for awnings and 15° off vertical setting for recovery boards
• Designed for the RacksBrax HD Hitch, but can also be used universally with accessories that have 50mm centre mounts

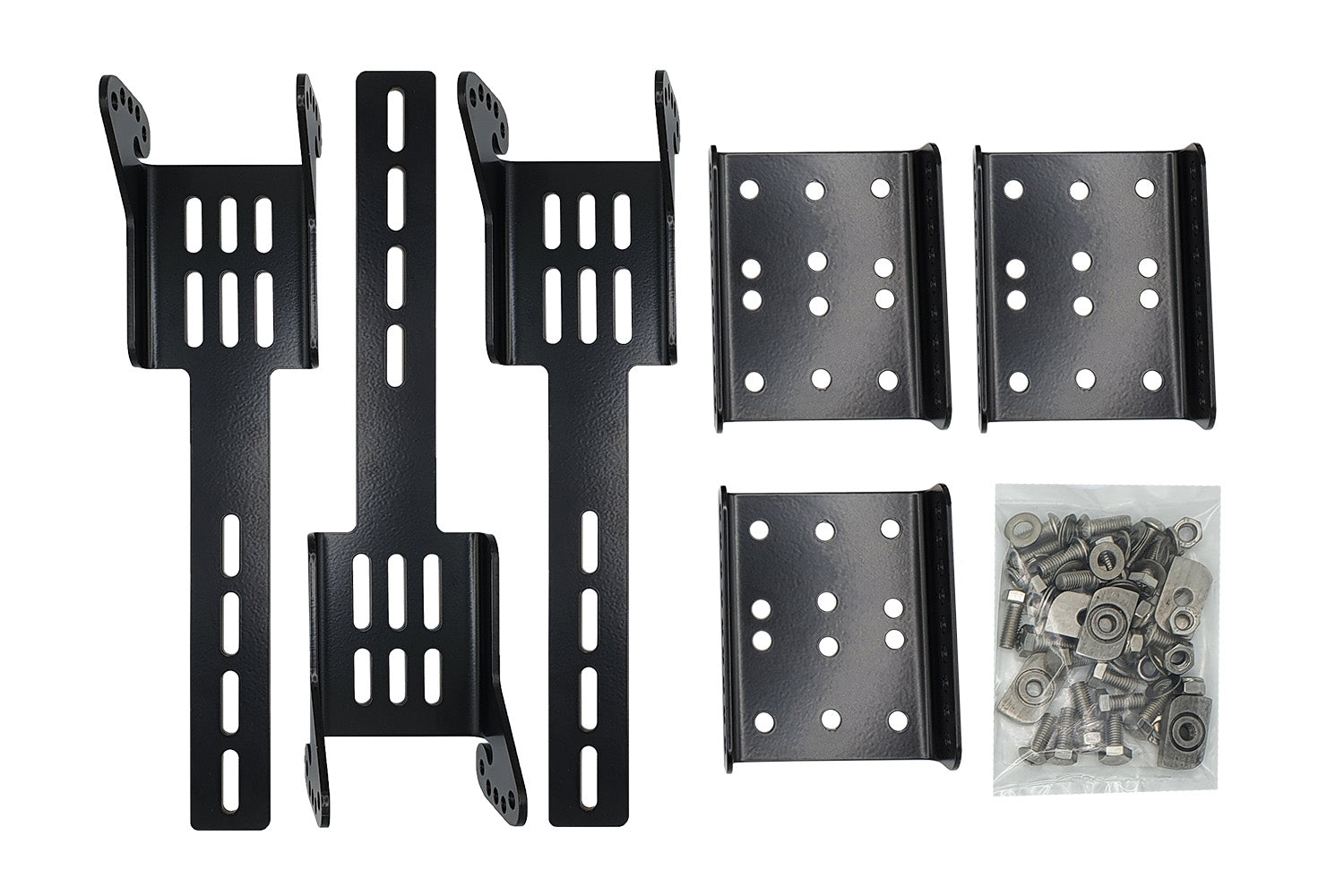

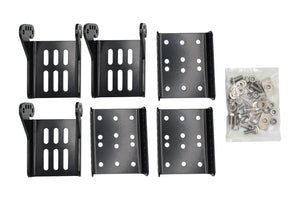

• Available in LONG or SHORT foot versions (in double or triple sets)
• Rated to 20kg (44lbs) per bracket, subject to roof rack load limits
• Built with high-strength materials for durability and reliability

These universal adjustable brackets ensure compatibility with a wide range of roof racks and accessories. Whether you're using them for an awning or recovery boards, the HD Adjustable Brackets offer universal versatility, providing flexibility and reliable performance for your roof rack system.
